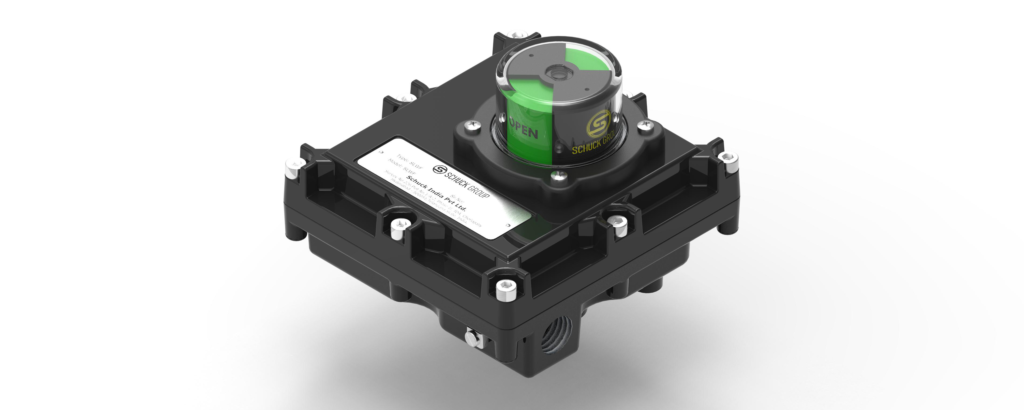

Switch Box
Schuck Limit Switch
Features
- Explosion proof to I, IIA, IIB, and IIC
- Aluminium and enclosure, powder coated for superior corrosion resistance
- Polycarbonade dome, Shatterproof
- Red and Green Indicator
- Color coded cams easy to identify, easy to set
- Special circuit board eliminates internal wiring
- Circuit board laminated for complete corrosion protection
- Solenoid termination inside the switch box is standard
- Serrated cams locked together ensure adjusted settings secured against any vibration
- Two conduit entries provided as standerd
- Conduit entry point 1/2" NPT, 3/4 NPT, M20X1.5
- Temperature -20°C to +80°C

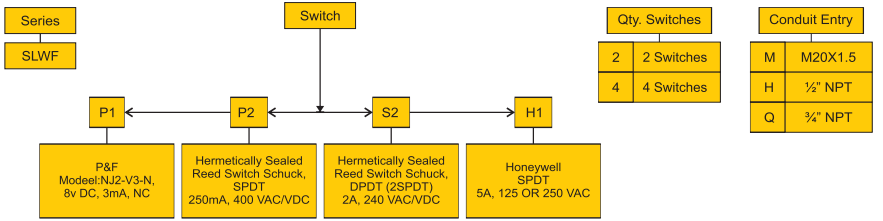

Ordering Options
Ordering Example
SLWF S1-2-Q
Explosion proof box with (2) hermetically sealed switches, 3/4 conduit entries, black enclouser with stainless steel bracket suitable for 80X30 tapping and for 20mm pinion height, with ATEX Cerificate

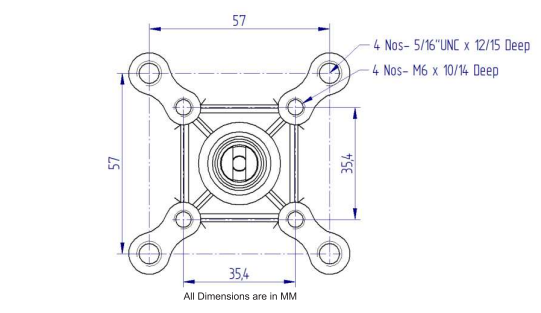

Mounting Setails
